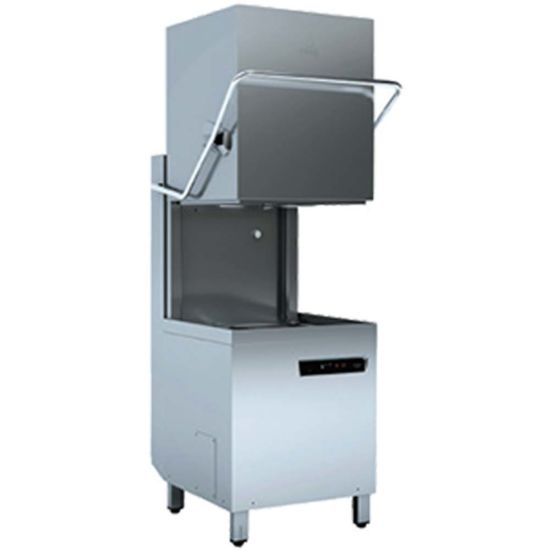

Fagor COP-174W Commercial Hood-Type Dishwasher

The Fagor COP-174W is a high-performance commercial hood-type dishwasher designed for busy restaurants, institutional kitchens, and other demanding foodservice environments. Combining powerful washing and rinsing performance with efficient water usage and durable construction, it provides the speed and reliability needed for high-volume dishwashing operations.

Featuring Fagor's Effi-Wash system, the COP-174W uses an optimized hydraulic design to deliver strong mechanical washing action while maintaining clean tank water and hygienic operating temperatures. The Effi-Rinse system incorporates a rinse pump and air-break design to provide a consistent high-temperature final rinse, even in locations where incoming water pressure may be lower.

Designed to improve workflow during busy service periods, the COP-174W can process up to 60 racks per hour and accommodates standard 19.75-inch square racks. Its generous 17-inch ware clearance provides ample room for a variety of dishes and kitchenware.

Soft-Start technology gradually introduces wash pressure at the beginning of the cycle, helping prevent dishes and glassware from shifting within the rack while reducing noise and the risk of breakage. The hood-type configuration provides convenient loading and unloading, making the unit particularly well suited for high-volume commercial kitchens.

Constructed for demanding daily use, the COP-174W features stainless steel wash and rinse arms, stainless steel tank filters, IPX4-rated controls, and a magnetic hood safety switch. Integrated detergent and rinse aid dispensers help streamline operation, while the pressure pump and air-break system support consistent rinsing performance.

Features

• High-performance hood-type dishwasher for commercial foodservice operations
• Produces up to 60 racks per hour
• Effi-Wash hydraulic system for powerful, consistent cleaning
• Effi-Rinse system for reliable high-temperature rinsing
• Integrated rinse pressure pump and air-break system
• Designed to maintain rinse performance with lower incoming water pressure
• Soft-Start technology helps minimize ware movement, noise, and potential breakage
• Stainless steel wash and rinse arms for lasting durability
• Stainless steel tank filters for easier cleaning and maintenance
• Built-in detergent and rinse aid dispensers
• IPX4-rated controls for protection in demanding commercial environments
• Magnetic hood safety switch
• Hot water assurance for consistent operation
• Durable construction designed for high-volume daily use

Technical Specifications

• • Model: COP-174W
  • Machine Type: Commercial Hood-Type Dishwasher
  • Dimensions (W × D × H): 24.75 × 29.5 × 57.67 in.
  • Rack Size: 19.75 × 19.75 in.
  • Maximum Ware Height Clearance: 17 in.
  • Production Capacity: Up to 60 racks per hour
  • Power: 12.77–18.76 kW
  • Wash Pump: 1 HP
  • Water Consumption: 0.53 gallons per cycle
  • Pressure Pump + Air Break: Standard
  • Rinse Aid Dispenser: Standard
  • Detergent Dispenser: Standard
  • Wash & Rinse Arms: AISI-304 stainless steel
  • Controls: IPX4-rated
  • Tank Filters: Stainless steel
  • Magnetic Hood Switch: Standard
  • Hot Water Assurance: Standard
  • Heat Recovery System (HRS): Optional

Product Downloads

https://cdn.shopify.com/s/files/1/0938/0328/2717/files/COP-174W.pdf?v=1788807015
