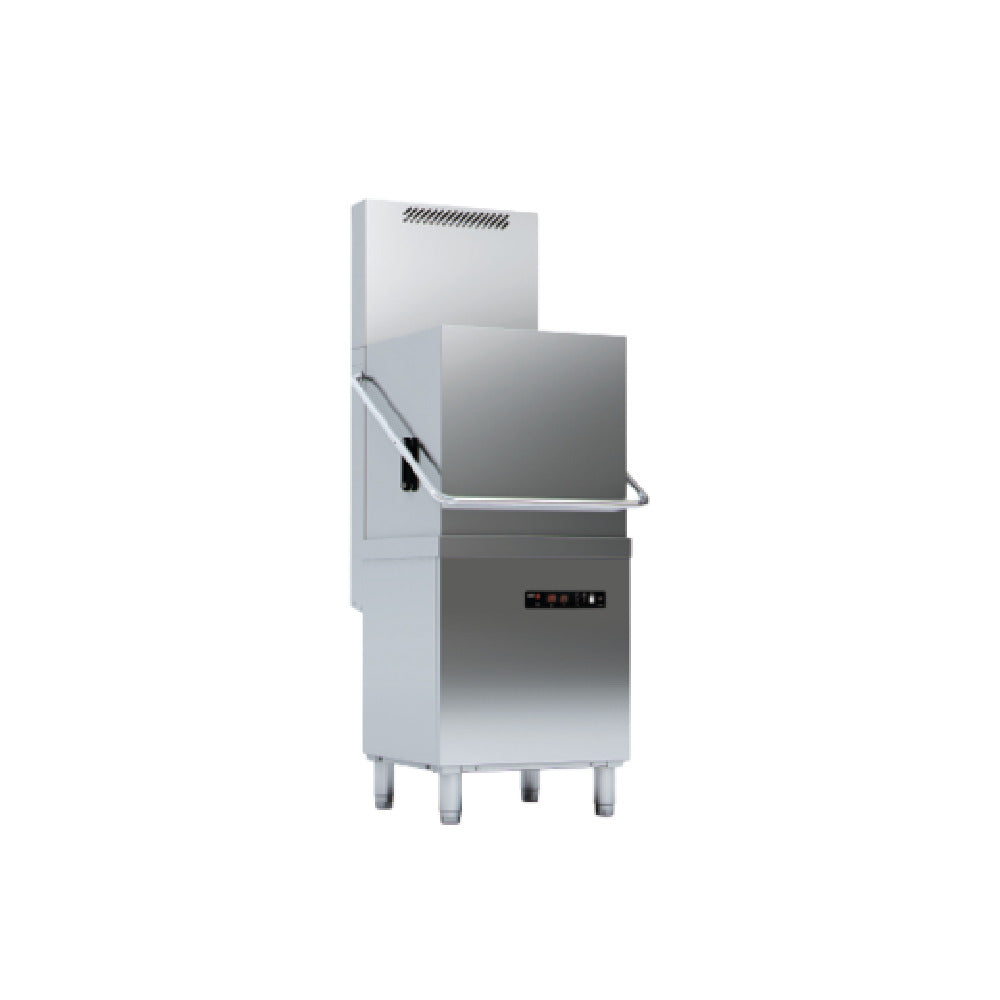

Fagor COP-174W HRS Commercial Hood-Type Dishwasher

The Fagor COP-174W HRS is a high-performance commercial hood-type dishwasher designed for demanding, high-volume foodservice environments. Combining powerful washing and rinsing performance with an integrated Heat Recovery System, it provides an efficient solution for restaurants, institutional kitchens, and other operations that require dependable dishwashing throughout the day.

The Effi-Wash hydraulic system delivers strong mechanical washing action while maintaining clean tank water and hygienic operating temperatures. For consistent final-rinse performance, Effi-Rinse technology uses an integrated rinse pump and air-break system to maintain a linear 185°F rinse, including in facilities where incoming water pressure may be low.

A key feature of the COP-174W HRS is Fagor's integrated Heat Recovery System (HRS). After the cleaning cycle, the system captures and condenses generated steam and uses the recovered heat to preheat incoming water. According to the manufacturer, this process can reduce energy usage by up to 40% while also eliminating the need for an expensive hood extraction system.

The dishwasher also incorporates Soft-Start technology, which helps prevent dishes and glassware from moving excessively inside the rack at the beginning of the wash cycle. This gentler startup helps reduce noise and provides additional protection against potential breakage.

Built for intensive commercial use, the COP-174W HRS features stainless steel wash and rinse arms, stainless steel tank filters, IPX4-rated controls, a magnetic hood safety switch, and integrated detergent and rinse aid dispensers. With a generous 17-inch ware clearance and capacity for up to 38 racks per hour, it combines high-volume washing capability with energy-conscious operation.

Features

• Commercial hood-type dishwasher with integrated Heat Recovery System
• Heat recovery technology captures steam and uses recovered heat to preheat incoming water
• Designed to reduce energy consumption by up to 40%
• Helps eliminate the need for a separate hood extraction system
• Effi-Wash hydraulic system for powerful and consistent cleaning
• Effi-Rinse system delivers a linear 185°F final rinse
• Integrated rinse pressure pump and air-break system
• Maintains rinse performance even with low incoming water pressure
• Soft-Start technology helps reduce ware movement, operating noise, and potential breakage
• Accommodates up to 17-inch-high ware
• Stainless steel wash and rinse arms for lasting durability
• Stainless steel tank filters for easier cleaning and maintenance
• Built-in detergent and rinse aid dispensers
• IPX4-rated controls for moisture protection
• Magnetic hood safety switch
• Hot water assurance for dependable operation
• Heavy-duty construction for demanding commercial environments

Technical Specifications

• Model: COP-174W HRS
• Machine Type: Ventless Hood-Type Dishwasher
• Dimensions (W × D × H): 24.75 × 29.5 × 75.5 in.
• Rack Size: 19.75 × 19.75 in.
• Maximum Ware Height Clearance: 17 in.
• Production Capacity: Up to 38 racks per hour
• Power: 12.77–18.76 kW
• Wash Pump: 1 HP
• Water Consumption: 0.53 gallons per cycle
• Pressure Pump + Air Break: Standard
• Rinse Aid Dispenser: Standard
• Detergent Dispenser: Standard
• Wash & Rinse Arms: AISI-304 stainless steel
• Controls: IPX4-rated
• Tank Filters: Stainless steel
• Magnetic Hood Switch: Standard
• Hot Water Assurance: Standard
• Heat Recovery System (HRS): Standard

Product Downloads

https://cdn.shopify.com/s/files/1/0938/0328/2717/files/COP-174W-HRS_Specifications_Sheet.pdf?v=1789609275
