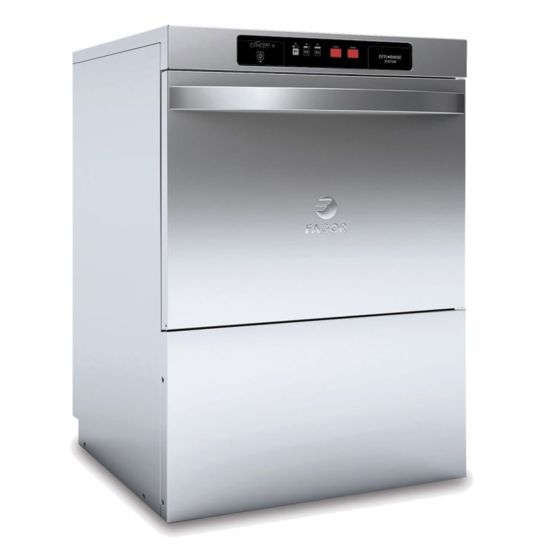

Fagor COP-504W Commercial Undercounter Dishwasher
The Fagor COP-504W is a high-performance commercial undercounter dishwasher designed for demanding restaurants, cafés, bars, and professional foodservice environments. Combining powerful washing performance with efficient water use and a compact undercounter design, it provides a dependable solution for operations that require consistent results throughout busy service periods.
The COP-504W features Fagor's Effi-Wash hydraulic system, which combines strong mechanical washing action with clean tank water and hygienic operating temperatures for effective cleaning. The Effi-Rinse system provides a consistent 185°F final rinse using an integrated rinse pump and air-break design, helping maintain reliable sanitizing performance even in locations with lower incoming water pressure.
Designed with efficiency and operator comfort in mind, the dishwasher incorporates Effi-Silent technology, using its double-skin construction to help reduce operating noise and retain heat for improved energy efficiency. Soft-Start technology gradually introduces wash pressure to help prevent dishes and glassware from shifting inside the rack, reducing noise and the risk of breakage.
The COP-504W also features MultiPower, allowing the electrical configuration to be adapted for either greater productivity or reduced power consumption. A convenient multi-connection box simplifies installation and service access, while IPX4-rated controls provide protection against moisture encountered during cleaning and everyday commercial operation.
Built for daily commercial use, the COP-504W includes stainless steel wash and rinse arms, stainless steel tank filters, integrated detergent and rinse aid dispensers, a drain pump, pressure pump with air break, and hot water assurance. Its double-skin body and door further enhance durability, heat retention, and quieter operation.
Features
- High-performance commercial undercounter dishwasher
- Effi-Wash hydraulic system for powerful and consistent cleaning
- Effi-Rinse system provides a consistent 185°F final rinse
- Integrated rinse pressure pump and air-break system
- Designed to perform reliably with low incoming water pressure
- Effi-Silent double-skin construction helps reduce noise and retain heat
- Soft-Start technology helps protect dishes and glassware from movement and breakage
- MultiPower capability provides flexible electrical configurations
- Multi-connection box for simplified installation and maintenance
- Built-in drain pump
- Integrated detergent and rinse aid dispensers
- Stainless steel wash and rinse arms
- Stainless steel tank filters for convenient cleaning
- IPX4-rated controls for moisture protection
- Magnetic door safety switch
- Hot water assurance for consistent performance
Technical Specifications
-
Model: COP-504W
-
Machine Type: Commercial Undercounter Dishwasher
-
Dimensions (W × D × H): 23.625 × 23.625 × 33.6875 in.
-
Rack Size: 19.75 × 19.75 in.
-
Maximum Ware Height Clearance: 14.1875 in.
-
Production Capacity: Up to 40 racks per hour
-
Power: 3.69 / 4.71 / 6.34 kW
-
Wash Pump: 3/4 HP
-
Water Consumption: 0.53 gallons per cycle
-
Drain Pump: Standard
-
Pressure Pump + Air Break: Standard
-
Rinse Aid Dispenser: Standard
-
Detergent Dispenser: Standard
-
Double-Skin Body and Door: Standard
-
Wash & Rinse Arms: AISI-304 stainless steel
-
Controls: IPX4-rated
-
Tank Filters: Stainless steel
-
Magnetic Door Switch: Standard
-
Hot Water Assurance: Standard
-
Heat Recovery System (HRS): Not available
Product Downloads
https://cdn.shopify.com/s/files/1/0938/0328/2717/files/COP-504W.pdf?v=1788806420
